Additional Information: Form Type Form 9; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1

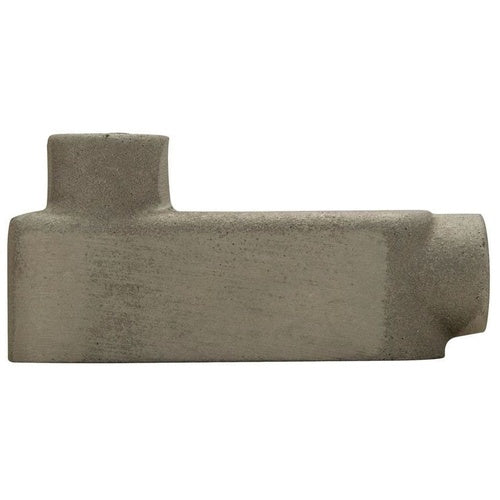

Catalog Number: LB39
Brand Name: FM9[TM]
Configuration: LB
Hub Size: 1 Inch
Number Of Hubs: 2
Hub Location: 90 Degree
Access Opening: Back
Capacity: 12.8 Cubic Inch
Catalog Description: FM9 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 9, LENGTH: 6.09 IN, WIDTH: 1-3/4 IN, HEIGHT: 3.03 IN, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBE
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Natural Copper-Free Aluminum (Body), Stainless Steel (Cover Screw) Material; 1.75 Inch Width X 3.03 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 9 Form Type; Back Access Opening; FM9[TM] Brand; Wire Size (3) 4 AWG; Capacity 12.8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Residential, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
