Additional Information: APPLICABLE STANDARD NEMA FB-1; CAPACITY 39 CU INCH
Catalog Number: LB59
Brand Name: Unilet[R]
Model: LB
Access Opening: Back
Configuration: LB
Cover Type: Natural Stamped Copper Free Aluminum
Hub Location: 90 Degree
Number Of Hubs: 2

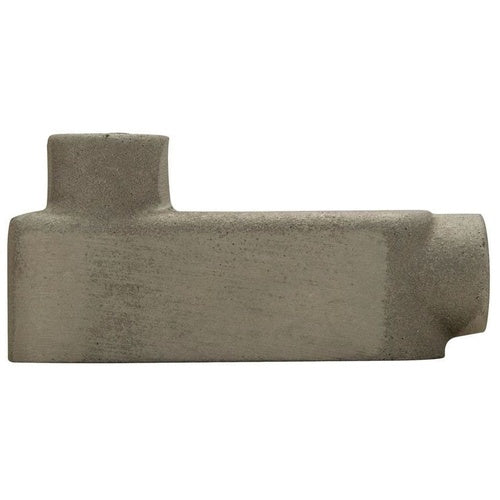

Catalog Description: FM9 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 9, LENGTH: 7.81 IN, WIDTH: 2.53 IN, HEIGHT: 4.03 IN, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NU
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Natural Copper-Free Aluminum (Body), Stainless Steel (Cover Screw) Material; 2.53 Inch Width X 4.03 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 9 Form Type; Back Access Opening; FM9[TM] Brand; Wire Size (3) 1/0 AWG; Capacity 39 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Residential, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
