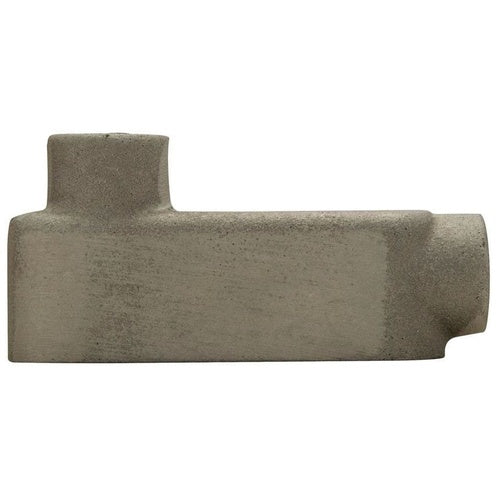

Appleton LB69 2" Conduit Body

Overview

Appleton LB69 2" Conduit Body

Product Specifications

• UPC: 78138109423
• Hub Size: 2 Inch
• Size: 3.19 Inch Width x 4.88 Inch Height
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Aluminum Body, Stainless Steel Cover Screw, Neoprene Gasket
• Form Type: Form 9
• Approval: UL 514A/B, CSA C22.2
• Used On: IMC/Rigid Conduit
• Additional Information: APPLICABLE STANDARD NEMA FB-1; CAPACITY 81.3 CU INCH
• Catalog Number: LB69
• Brand Name: Unilet[R]
• Model: LB
• Access Opening: Back
• Configuration: LB
• Cover Type: Natural Stamped Copper Free Aluminum
• Hub Location: 90 Degree
• Number Of Hubs: 2
• Catalog Description: FM9 UNILETS TYPE LB CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 9, LENGTH: 10.13 IN, WIDTH: 3.19 IN, HEIGHT: 4.88 IN, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Natural Copper-Free Aluminum (Body), Stainless Steel (Cover Screw) Material; 3.19 Inch Width X 4.88 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 9 Form Type; Back Access Opening; FM9[TM] Brand; Wire Size (3) 4/0 AWG; Capacity 81.3 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Residential, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381094238
• SKU Name: app lb69
