Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Cast Grayloy Iron
Hub Location: 90 Degree
Number Of Hubs: 2
Hub Size: 2-1/2 Inch
Size: 13.94 Inch L x 6.69 Inch W x 6.13 Inch H

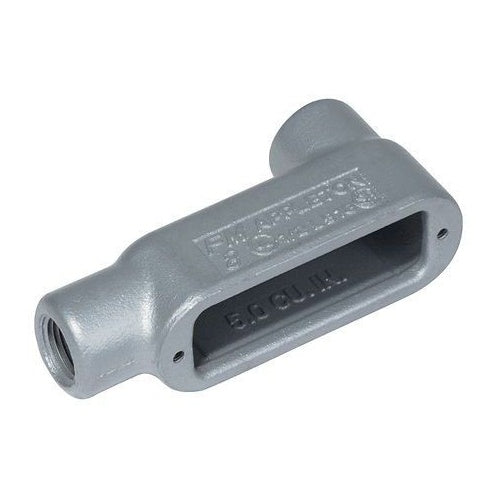

Catalog Description: IMC/RIGID CONDUIT BODY, ACCESS OPENING BACK, CONFIGURATION LB, COVER TYPE ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED CAST GRAY IRON/STAMPED STEEL, HUB LOCATION 90 DEG, NUMBER OF HUBS 2, HUB SIZE 2-1/2 INCH, SIZE 13.94 INCH L X 6.13 INCH H, INSTALLATION THREADED, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED GRAY IRON BODY, NEOPRENE GASKET, STAINLESS STEEL SCREW, FORM TYPE FORM 8, APPROVAL UL 514A/514B/E2527, CSA C22.2, USED ON IMC/RIGID CONDUIT, APPLICABLE STANDARD NEC/CEC, NEMA FB-1, CAPACITY 200 CU INCH
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 13.94 Inch Length X 6.13 Inch Height Size; Imc/Rigid Conduit Used on; 2-1/2 Inch Hub Size; Threaded Installation; lb Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 8 Form Type; Back Access Opening; FM8[TM] Brand; Wire Size (3) 300 MCM; Capacity 200 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
