Additional Information: Capacity 4 Cu Inch; Application Serve as Pulling Fitting for Heavy/Difficult to Bend Conductors, Use as Service Entrance Fitting

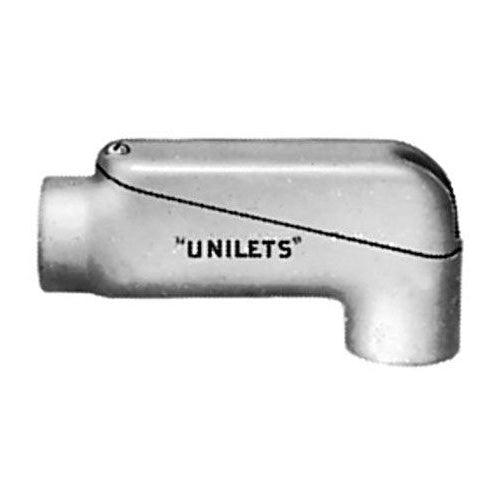

Catalog Number: LBD50-M
Brand Name: Unilet[R]
Model: LBD
Type: Pulling
Trade Size: 1/2 Inch
Bend Angle: 90 Deg
Connection Type: Female
Material: Malleable Iron Body/Cover, Fiber Gasket
Catalog Description: CONDUIT ELBOW, TYPE PULLING, TRADE SIZE 1/2 INCH, BEND ANGLE 90 DEG, CONNECTION TYPE FEMALE, MATERIAL MALLEABLE IRON (BODY/COVER), FIBER (GASKET), FINISH ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED, APPROVAL UL 514B, USED ON THREADED RIGID METAL CONDUIT AND IMC, INCLUSION COVER AND GASKET, SIZE 5 INCH L X 1.31 INCH W X 2.19 INCH H
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body/Cover), Composition Fiber (Gasket) Material; 5 Inch Length X 1.31 Inch Width X 2.19 Inch Height Size; Imc/Rigid Metal Conduit Used on; Threaded Female/Female Installation; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Wiring Capacity 4 Cubic Inch; Includes Gasket Cover; Application Commercial/Industrial; Applicable Standard Nec/Cec; LBD Model
