Additional Information: Applicable Standard NEMA FB-1; Capacity 7 Cu Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance

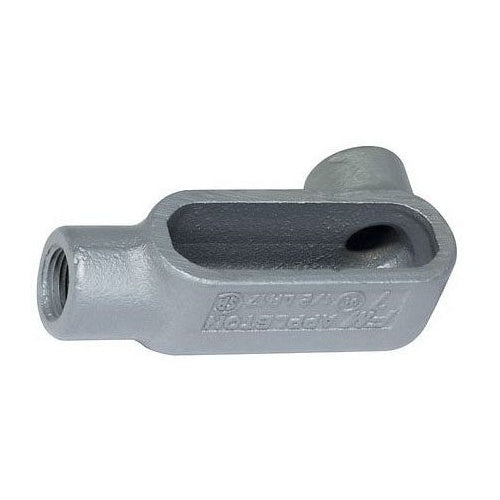

Catalog Description: FM7 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 7, LENGTH: 5.19 IN, WIDTH: 2.44 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 5.19 Inch Length X 2.44 Inch Width Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 6 AWG; Capacity 7 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
