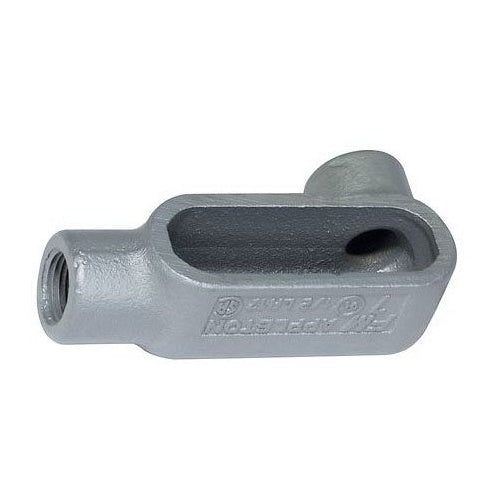

Appleton LL37SA 1" Aluminum LL-Type Conduit Body

Overview

Appleton LL37SA 1" Aluminum LL-Type Conduit Body

Product Specifications

• UPC: 78138160084
• Size: 6 Inch L x 2.75 Inch W
• Installation: Threaded
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard NEMA FB-1; Capacity 11 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conducto
• Catalog Number: LL37SA
• Brand Name: Unilet[R], FM7[TM]
• Access Opening: Left Side
• Configuration: LL
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: 90 Deg
• Number Of Hubs: 2
• Hub Size: 1 Inch
• Catalog Description: FM7 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 7, LENGTH: 6 IN, WIDTH: 2-3/4 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 6 Inch Length X 2.75 Inch Width Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 4 AWG; Capacity 11 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381600842
• SKU Name: app ll37sa

Resources

• Manufacturer Spec Sheet
