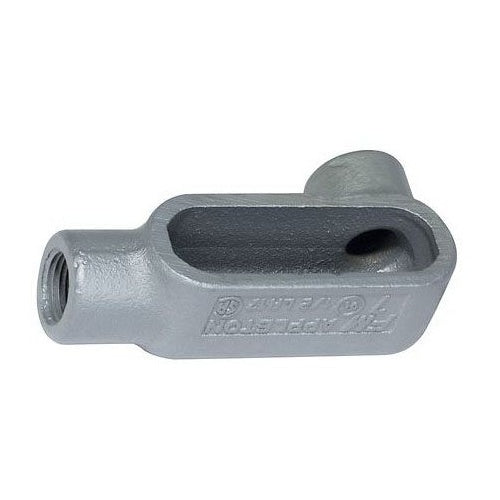

Appleton LL47 1-1/4" LL-Type Conduit Body

Overview

Appleton LL47 1-1/4" LL-Type Conduit Body

Product Specifications

• UPC: 78138150684
• Capacity: 20 Cubic Inch
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Size: 6.5 Inch Length x 3.19 Inch Width
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: LL47
• Brand Name: Appleton
• Model: LL
• Configuration: LL
• Hub Size: 1-1/4 Inch
• Number Of Hubs: 2
• Hub Location: 90 Degree
• Access Opening: Left Side
• Catalog Description: FM7 UNILETS TYPE LL CONDUIT OUTLET BODY, HUB SIZE: 1-1/4 IN, FORM: 7, LENGTH: 6-1/2 IN, WIDTH: 3.19 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMALE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 6.5 Inch Length X 3.19 Inch Width Size; Imc/Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; LL Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Left Side Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 20 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381506847
• SKU Name: app ll47
