Additional Information: Capacity 11.8 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
Catalog Number: LR100A
Brand Name: Appleton
Model: LR
Access Opening: Right Side
Configuration: LR
Cover Type: Epoxy Powder Coated Cast Aluminum
Hub Location: 90 Degree
Number Of Hubs: 2

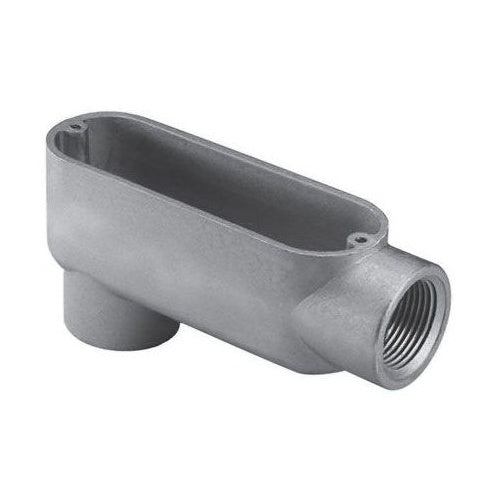

Catalog Description: FORM 85 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 85, LENGTH: 6 IN, WIDTH: 2.63 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMB
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 6 Inch Length X 2.63 Inch Width Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 85 Form Type; Right Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 4 AWG; Capacity 11.8 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
