Additional Information: Applicable Standard NEMA FB-1; Capacity 244 Cu Inch
Catalog Number: LR107
Brand Name: Unilet[R], FM7[TM]
Access Opening: Right Side
Configuration: LR
Cover Type: Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron
Hub Location: 90 Degree
Number Of Hubs: 2
Hub Size: 4 Inch

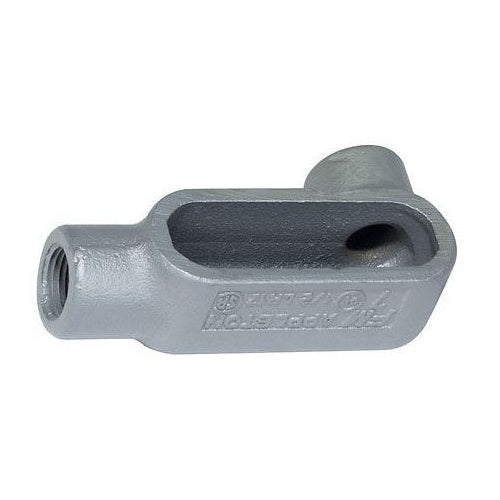

Catalog Description: FM7 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 4 IN, FORM: 7, LENGTH: 12.69 IN, WIDTH: 6.94 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERED FEMALE THR
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 12.69 Inch Length X 6.94 Inch Width Size; Imc/Rigid Conduit Used on; 4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Right Side Access Opening; FM7[TM] Brand; Wire Size (3) 350 MCM; Capacity 244 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
