Additional Information: Applicable Standard NEMA FB-1; Capacity 20 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conducto

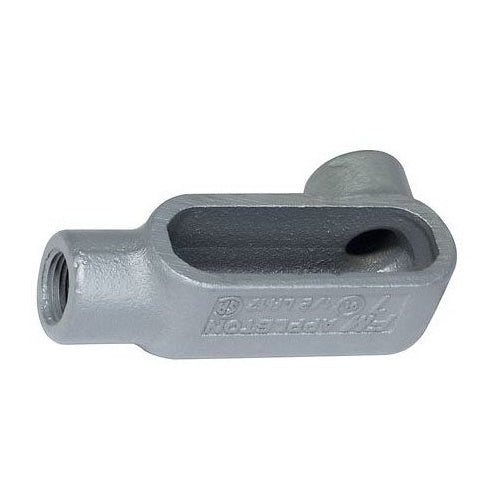

Catalog Description: FM7 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 1-1/4 IN, FORM: 7, LENGTH: 6-1/2 IN, WIDTH: 3.19 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, C
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 6.5 Inch Length X 3.19 Inch Width Size; Imc/Rigid Conduit Used on; 1-1/4 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Right Side Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 20 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
