Additional Information: Capacity 50 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1

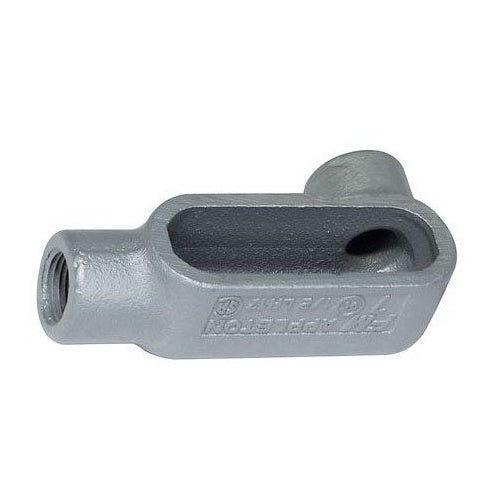

Catalog Description: FM7 UNILETS TYPE LR CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 7, LENGTH: 8.13 IN, WIDTH: 4.06 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBER E2527, CSA C22.2 NO. 18.3, CSA 065183, NEMA FB-1, FOR USE WITH RIGID STEEL, RIGID ALUMINUM CONDUIT AND IMC
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 8.13 Inch Length X 4.06 Inch Width Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; LR Configuration; 2 Hub(S); UL 514A/B, CSA C22.2 Approval; 90 Degree Hub Location; Form 7 Form Type; Right Side Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 50 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
