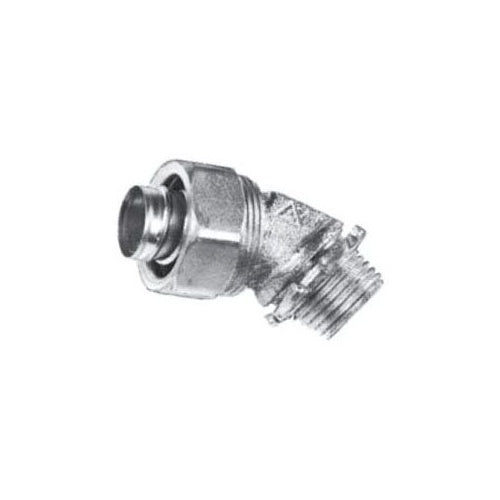

Appleton ST-45125 1-1/4" 45D Liqtite Connector

Overview

Appleton ST-45125 1-1/4" 45D Liqtite Connector

Product Specifications

• UPC: 78138168025
• Additional Information: Enclosure Type Class I Div 2; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: ST-45125
• Model: ST
• Type: 45 Degree
• Throat Type: Non-Insulated
• Trade Size: 1-1/4 Inch
• Material: Zinc Electroplated Chromate and Epoxy Powder Coated Malleable Iron (Body/Cap), Aluminum (Ferrule), Polypropylene (Sealing Ring)
• Approval: UL, CSA
• Used On: Liquid Tight Flexible Metallic Conduit
• Catalog Description: ST SERIES 45 DEG LIQUIDTIGHT CONNECTOR WITH PLAIN THROAT, SIZE: 1-1/4 IN, CONNECTION: THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON, FINISH: CHROMATE, EPOXY POWDER COAT/ZINC ELECTROPLATED, THREAD LENGTH: 0.63 IN, STANDARD: CLASS I, DI
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 3-Piece, 45 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body/Compression Nut) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 1-1/4 Inch Trade Size; Non-Insulated Throat Type; Liquidtight ST[TM] Brand; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Polypropylene Sealing Ring With Locknut; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; ST Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 781381680257
• SKU Name: app st45125
