Material: Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body/Cap, Aluminum Ferrule, Polypropylene Ring
Approval: UL 514B, CSA C22.2
Used On: Flexible Metallic Liquidtight Conduit

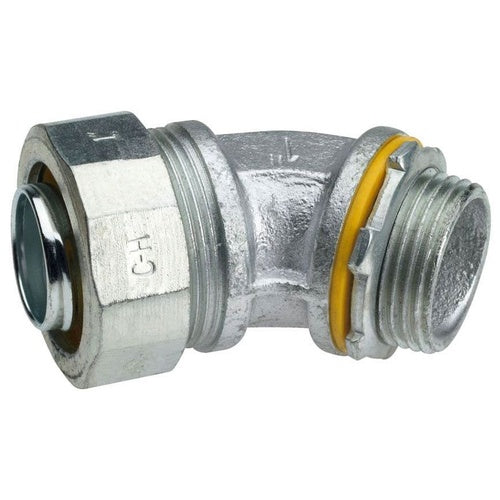

Catalog Description: APPLETON STB SERIES 45 DEG LIQUIDTIGHT CONNECTOR WITH INSULATED THROAT, SIZE: 4 IN, CONNECTION: THREADED X COMPRESSION, MATERIAL: MALLEABLE IRON, FINISH: CHROMATE, EPOXY POWDER COAT/ZINC ELECTROPLATED, THREAD LENGTH: 1-1/4 IN, STANDARD: CLASS I, DIVISION 2, UL 514B, E14814, CSA C22.2 NO. 18.3, 065178, NEMA FB-1, FOR LIQUIDTIGHT FLEXIBLE METAL CONDUIT
Category: Liquid Tight Flex. Conduit Fittings
Full Technical Description: 3-Piece, 45 Degree Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body/Compression Nut) Material; Liquid Tight Flexible Metal Conduit Used on; UL 514B, CSA C22.2 Approval; 4 Inch Trade Size; Insulated Throat Type; Liquidtight ST[TM] Brand; Enclosure Rating Class I Div 2, Class I Zone 2, Class II Div 1 and 2, Class III Div 1 and 2; Includes Polypropylene Sealing Ring With Locknut; Application Heavy Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1; STB Model
Manufacturer: Appleton Electric
Manufacturer Brand: Appleton Electric
Sub Category: Liquidtight Flexible Conduit Connector
