Additional Information: Capacity 11.8 Cubic Inch; Includes Cover and Gasket; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
Catalog Number: T-100ACGA
Brand Name: Appleton
Model: T
Access Opening: Side
Configuration: T
Cover Type: Aluminum/Malleable Iron/Steel
Hub Location: Tee
Number Of Hubs: 3

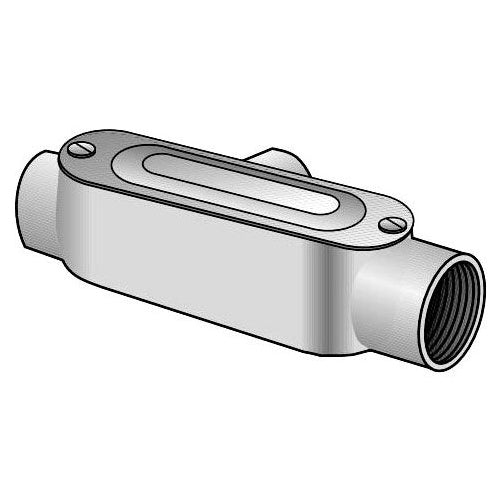

Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY WITH ASSEMBLED COVER AND GASKET, HUB SIZE: 1 IN, FORM: 85, LENGTH: 6.69 IN, HEIGHT: 1.88 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, ST
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Enamel Copper-Free Aluminum (Body), Neoprene (Gasket) Material; 6.69 Inch Length X 1.88 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A, CSA C22.2 Approval; Epoxy Powder Coated Enamel Copper-Free Aluminum Cover Type; Tee Hub Location; Form 85 Form Type; Side Access Opening; Form 85[TM] Brand; Wire Size (3) 4 AWG; Enclosure Rating Class I Div 2/2.1; Includes Assembled Cover and Gasket; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
