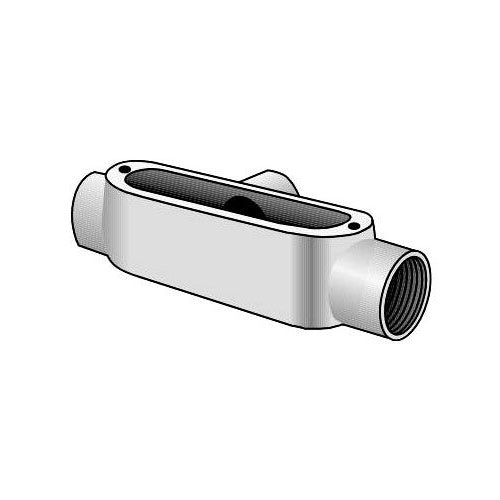

Appleton T150A 1-1/2" Aluminum T-Type Conduit Body

Overview

Appleton T150A 1-1/2" Aluminum T-Type Conduit Body

Product Specifications

• UPC: 78138168780
• Capacity: 35 Cubic Inch
• Enclosure: Class I Div 2
• Material: Copper-Free Aluminum (Body), Stainless Steel (Screw)
• Finish: Epoxy Powder Coated
• Size: 8.56 Inch Length x 2.75 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 85; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: T150A
• Brand Name: Appleton
• Model: T
• Configuration: T
• Hub Size: 1-1/2 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Side
• Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 85, LENGTH: 8.56 IN, HEIGHT: 2-3/4 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FI
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 8.56 Inch Length X 2.75 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; Form 85[TM] Brand; Wire Size (3) 1 AWG; Capacity 35 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381687805
• SKU Name: app t150a
