Size: 6.25 Inch Length x 2.63 Inch Width x 2 Inch Height
Approval: UL 514A/B, CSA C22.2
Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
Catalog Number: T27
Brand Name: Appleton
Model: T
Configuration: T
Hub Size: 3/4 Inch
Number Of Hubs: 3
Hub Location: Tee
Access Opening: Side

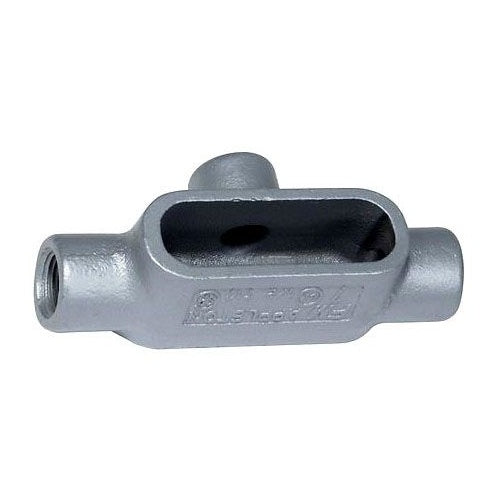

Catalog Description: FM7 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 3/4 IN, FORM: 7, LENGTH: 6-1/4 IN, WIDTH: 2.63 IN, HEIGHT: 2 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPER
Category: Steel Conduit Bodies & Covers
Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 6.25 Inch Length X 2.63 Inch Width X 2 Inch Height Size; Imc/Rigid Conduit Used on; 3/4 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Side Access Opening; FM7[TM] Brand; Wire Size (3) 6 AWG; Capacity 10 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
