Additional Information: Applicable Standard NEMA FB-1; Capacity 185 Cu Inch
Catalog Number: T300A
Brand Name: Unilet[R], Form 85[TM]
Access Opening: Side
Configuration: T
Cover Type: Aluminum/Malleable Iron/Steel
Hub Location: Tee
Number Of Hubs: 3
Hub Size: 3 Inch

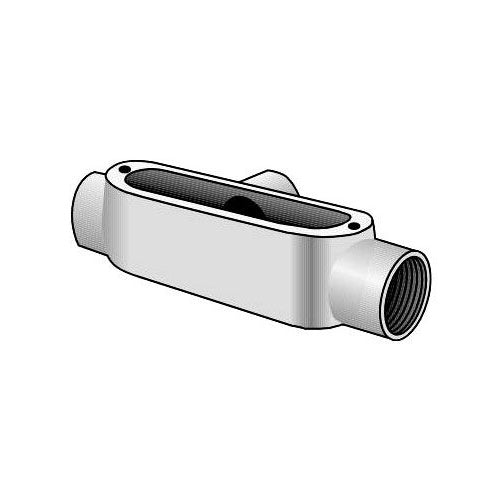

Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 3 IN, FORM: 85, LENGTH: 15.13 IN, HEIGHT: 4.63 IN, MATERIAL: SAND CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUMBE
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 15.13 Inch Length X 4.63 Inch Height Size; Imc/Rigid Conduit Used on; 3 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 300 MCM; Capacity 185 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
