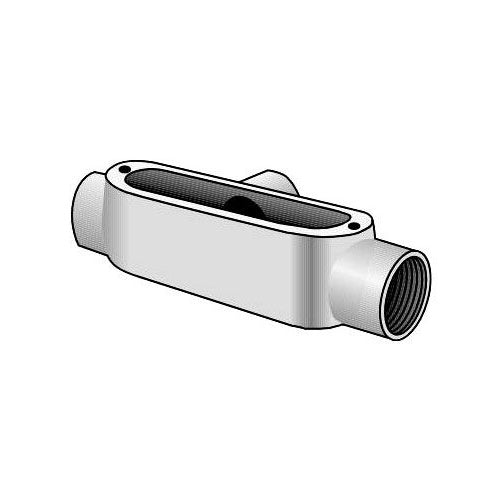

Appleton T350A 3-1/2" Aluminum T-Type Conduit Body

Overview

Appleton T350A 3-1/2" Aluminum T-Type Conduit Body

Product Specifications

• UPC: 78138112158
• Size: 18.13 Inch L x 5.19 Inch H
• Installation: Threaded
• Material: Epoxy Powder Coated Sand Cast Copper Free Aluminum
• Form Type: Form 85
• Approval: UL 514A/514B, CSA C22.2
• Used On: Rigid/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1; Capacity 314 Cu Inch
• Catalog Number: T350A
• Brand Name: Unilet[R], Form 85[TM]
• Access Opening: Side
• Configuration: T
• Cover Type: Aluminum/Malleable Iron/Steel
• Hub Location: Tee
• Number Of Hubs: 3
• Hub Size: 3-1/2 Inch
• Catalog Description: FEATURES: ACCURATELY TAPPED, TAPERED THREADS FOR TIGHT, RIGID JOINTS AND EXCELLENT GROUND CONTINUITY, ROUNDED SMOOTH INTEGRAL BUSHINGS IN HUBS PROTECT CONDUCTOR INSULATION, MORE WIRING SPACE ROOMY INTERIORS, APPLICATION: SERVE AS PULLING FITTINGS, MAKE BE
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Epoxy Powder Coated Copper-Free Sand Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 18.13 Inch Length X 5.19 Inch Height Size; Imc/Rigid Conduit Used on; 3-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Wire Size (3) 350 MCM; Capacity 314 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381121583
• SKU Name: app t350a
