Additional Information: Capacity 4 Cubic Inch; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1
Catalog Number: T50A
Brand Name: Appleton
Model: T
Access Opening: Side
Configuration: T
Cover Type: Aluminum/Malleable Iron/Steel
Hub Location: Tee
Number Of Hubs: 3

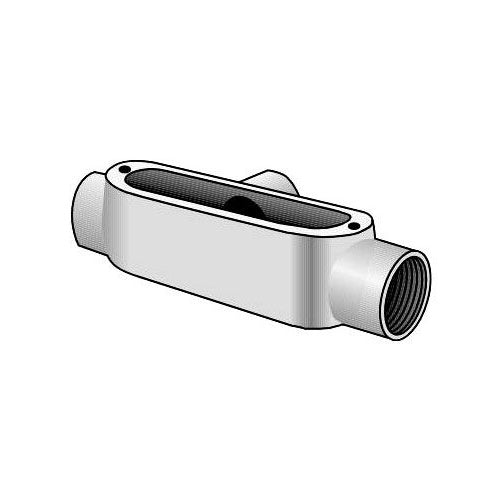

Catalog Description: FORM 85 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 85, LENGTH: 4-3/4 IN, HEIGHT: 1.38 IN, MATERIAL: PRESSURE CAST ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 4.75 Inch Length X 1.38 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 85 Form Type; Side Access Opening; UNILETS[R], Form 85[TM] Brand; Capacity 4 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard Nec/Cec, NEMA FB-1
