Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1

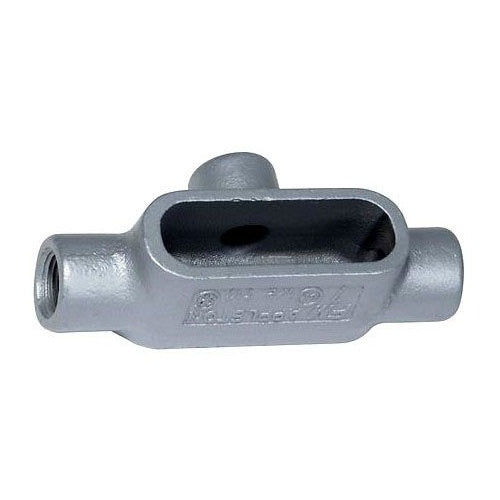

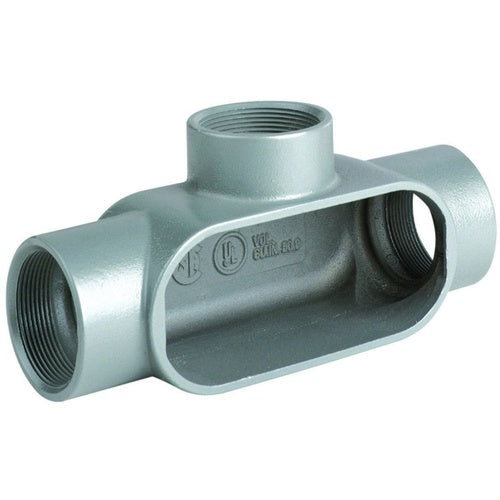

Catalog Description: FM7 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 7, LENGTH: 8.19 IN, WIDTH: 3.56 IN, HEIGHT: 2.56 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE N
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 8.19 Inch Length X 3.56 Inch Width X 2.56 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Side Access Opening; FM7[TM] Brand; Wire Size (3) 3 AWG; Capacity 28 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
