Additional Information: Applicable Standard NEMA FB-1; Capacity 38.5 Cu Inch
Catalog Number: T59
Brand Name: Unilet[R], FM9[TM]
Access Opening: Side
Configuration: T
Cover Type: Natural Stamped Copper Free Aluminum
Hub Location: Tee
Number Of Hubs: 3
Hub Size: 1-1/2 Inch

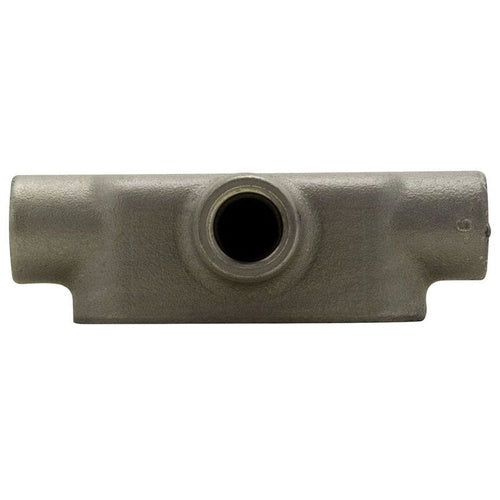

Catalog Description: FM9 UNILETS TYPE T CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 9, LENGTH: 8-1/4 IN, WIDTH: 3.53 IN, HEIGHT: 3.03 IN, MATERIAL: ALUMINUM, FINISH: NATURAL ALUMINUM, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE NUM
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Natural Copper-Free Aluminum (Body), Stainless Steel (Cover Screw) Material; 8.25 Inch Length X 3.53 Inch Width X 3.03 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 9 Form Type; Side Access Opening; FM9[TM] Brand; Wire Size (3) 1/0 AWG, (3) 2 AWG; Capacity 38.5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
