Additional Information: Applicable Standard NEMA FB-1; Capacity 6 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductor

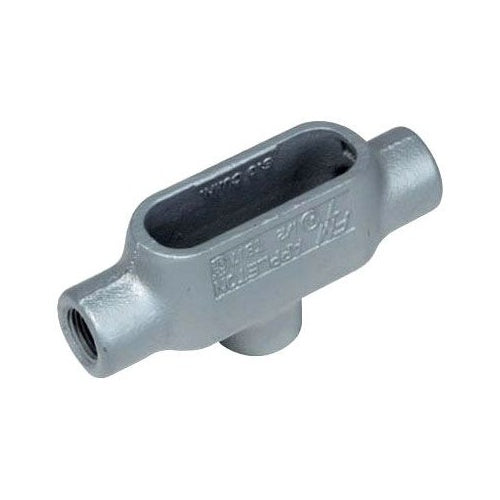

Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1/2 IN, FORM: 7, LENGTH: 5.63 IN, WIDTH: 1.56 IN, HEIGHT: 2.63 IN, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FEMALE THREADED, STANDARD: UL 514A, UL 514B, UL FILE N
Category: Aluminum Conduit Bodies & Covers
Full Technical Description: Epoxy Powder Coated Copper-Free Cast Aluminum (Body), Stainless Steel (Cover Screw) Material; 5.63 Inch Length X 1.56 Inch Width X 2.63 Inch Height Size; Imc/Rigid Conduit Used on; 1/2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Capacity 6 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
