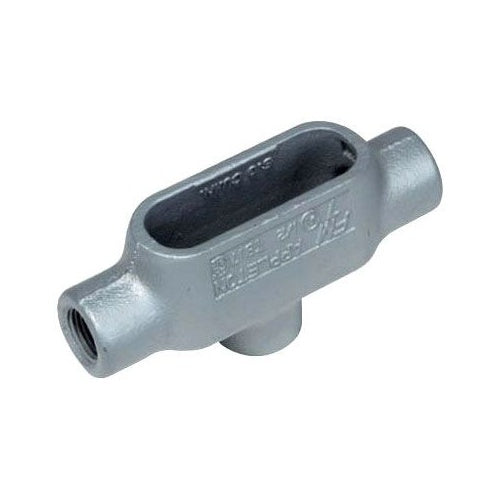

Appleton TB37 1" TB-Type Conduit Body

Overview

Appleton TB37 1" TB-Type Conduit Body

Product Specifications

• UPC: 78138150728
• Capacity: 15.5 Cubic Inch
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Size: 7.25 Inch Length x 2 Inch Width x 3.25 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: TB37
• Brand Name: Appleton
• Model: TB
• Configuration: TB
• Hub Size: 1 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Back
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1 IN, FORM: 7, LENGTH: 7-1/4 IN, WIDTH: 2 IN, HEIGHT: 3-1/4 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 7.25 Inch Length X 2 Inch Width X 3.25 Inch Height Size; Imc/Rigid Conduit Used on; 1 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 4 AWG; Capacity 15.5 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507288
• SKU Name: app tb37
