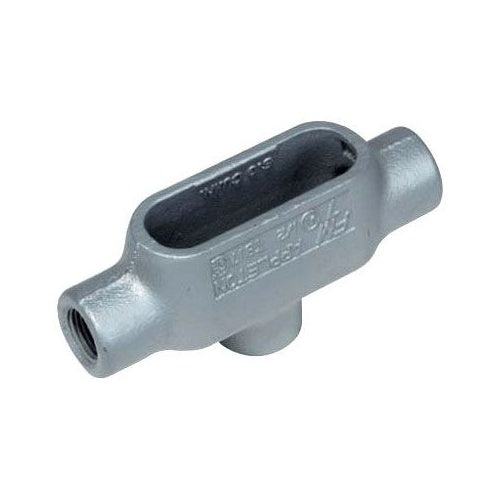

Appleton TB57 1-1/2" TB-Type Conduit Body

Overview

Appleton TB57 1-1/2" TB-Type Conduit Body

Product Specifications

• UPC: 78138150731
• Size: 8.19 Inch Length x 2.44 Inch Width x 3.63 Inch Height
• Installation: Threaded
• Material: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
• Form Type: Form 7
• Approval: UL 514A/B, CSA C22.2, NEC
• Used On: IMC/Rigid Conduit
• Additional Information: Enclosure Rating Class I Div 2; Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance, Hazardous Location; Applicable Standard NEMA FB-1
• Catalog Number: TB57
• Brand Name: FM7[TM]
• Access Opening: Tee Back
• Configuration: TB
• Cover Type: Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Grayloy-Iron
• Hub Location: Tee Back
• Number Of Hubs: 3
• Hub Size: 1-1/2 Inch
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 1-1/2 IN, FORM: 7, LENGTH: 8.19 IN, WIDTH: 2.44 IN, HEIGHT: 3.63 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION:
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 8.19 Inch Length X 2.44 Inch Width X 3.63 Inch Height Size; Imc/Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 28 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507318
• SKU Name: app tb57
