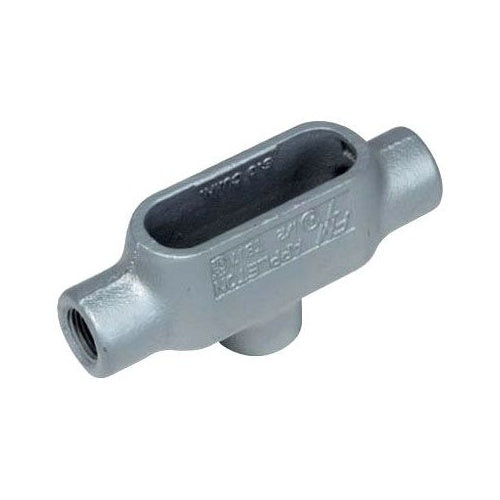

Appleton TB67 2" TB-Type Conduit Body

Overview

Appleton TB67 2" TB-Type Conduit Body

Product Specifications

• UPC: 78138150732
• Enclosure: Class I Div 2
• Material: Grayloy Iron (Body), Stainless Steel (Screw)
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated (Body)
• Size: 9.19 Inch Length x 3 Inch Width x 4.19 Inch Height
• Approval: UL 514A/B, CSA C22.2
• Additional Information: Form Type Form 7; Installation Threaded; Used On Rigid/IMC Conduit; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC, CEC, NEMA FB-1
• Catalog Number: TB67
• Brand Name: FM7[TM]
• Configuration: TB
• Hub Size: 2 Inch
• Number Of Hubs: 3
• Hub Location: Tee
• Access Opening: Back
• Capacity: 50 Cubic Inch
• Catalog Description: FM7 UNILETS TYPE TB CONDUIT OUTLET BODY, HUB SIZE: 2 IN, FORM: 7, LENGTH: 9.19 IN, WIDTH: 3 IN, HEIGHT: 4.19 IN, MATERIAL: GRAYLOY-IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), COLOR: GRAY, CONNECTION: TAPERE
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) Material; 9.19 Inch Length X 3 Inch Width X 4.19 Inch Height Size; Imc/Rigid Conduit Used on; 2 Inch Hub Size; Threaded Installation; TB Configuration; 3 Hub(S); UL 514A/B, CSA C22.2 Approval; Tee Hub Location; Form 7 Form Type; Back Access Opening; FM7[TM] Brand; Wire Size (3) 2 AWG; Capacity 50 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous/Wet Location; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 781381507325
• SKU Name: app tb67
