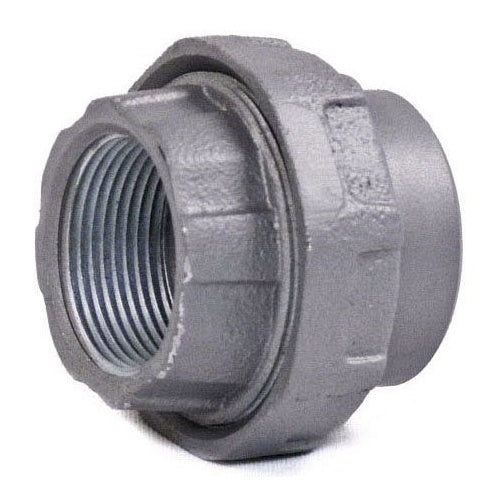

Appleton UNF250R 2-1/2" Female Union

Overview

Appleton UNF250R 2-1/2" Female Union

Product Specifications

• UPC: 78138169465
• Additional Information: Enclosure Type Class I Group B C D, Class II Group E F G, Class III; Application Connecting Conduit to Conduit, Hazardous Location; Applicable Standard NEC/CEC, Mil Spec MIL-F28675
• Catalog Number: UNF250R
• Model: UNF
• Type: Female/Female
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Trade Size: 2-1/2 Inch
• Diameter: 4-1/4 Inch
• Length: 3-3/16 Inch
• Approval: UL, CSA
• Catalog Description: UNILETS UNF UNION, TRADE SIZE: 2-1/2 IN, OUTSIDE DIAMETER: 4.88 IN, LENGTH: 3.38 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: MALLEABLE IRON, CONNECTION: FEMALE THREADED, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female/Female Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 3.38 Inch; UL 886/1203, CSA C22.2 Approval; 4.88 Inch Diameter; 2-1/2 Inch Trade Size; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; UNF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 781381694650
• SKU Name: app unf250r
