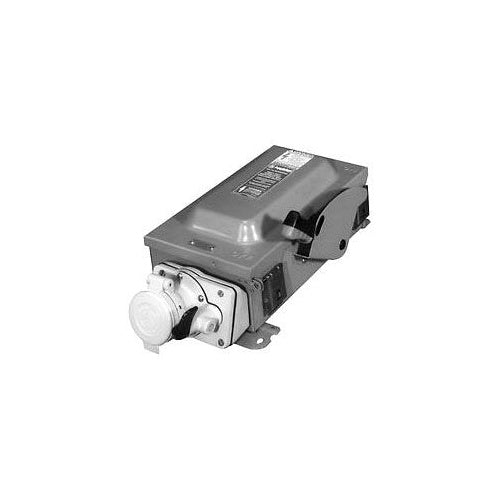

Appleton WSRD103542SQ Nema12-100A Receptacle

Overview

Appleton WSRD103542SQ Nema12-100A Receptacle

Product Specifications

• UPC: 78138175689
• Number Of Wires: 3
• Door Type: PADLOCKABLE COVER
• Fuse Provision: NON FUSIBLE
• Grounding Style: 2, SHELL, EXTRA POLE
• Material: ENAMEL COATED SHEET METAL ENCLOSURE, EPOXY POWDER COATED (INSIDE, OUTSIDE) COPPER FREE ALUMINUM RECEPTACLE ASSEMBLY
• Enclosure: NEMA 12
• Additional Information: APPLICATION AUTOMOTIVE AND STEEL PROCESSING PLANT, FABRICATION YARDS AND SHIPYARDS, MILK PROCESSING PLANT, PULP AND PAPER PROCESSING; APPROVAL UL 50, UL 98, UL 498, UL 1682, CSA
• Catalog Number: WSRD103542SQ
• Brand Name: Appleton[R]
• Model: WSRD
• Type: INTERLOCKED
• Constructional Feature: RAIN TIGHT, WATER TIGHT
• Voltage Rating: 600 VAC 3 PHASE/250 VDC
• Current Rating: 100 AMPERE
• Number Of Poles: 4
• Catalog Description: INTERLOCKED RECEPTACLE AND DISCONNECT SWITCH, TYPE INTERLOCKED, CONSTRUCTIONAL FEATURE CORROSION RESISTANT, RAINTIGHT, WATERTIGHT, VOLTAGE RATING 600 VAC AT 50/60 HZ, 250 VDC, CURRENT RATING 100 AMPERE, NUMBER OF POLES 4, NUMBER OF WIRES 3, DOOR TYPE SPRING DOOR, REMOVABLE HINGED, PADLOCKABLE COVER, FUSE PROVISION NON-FUSIBLE, HUB TYPE 1-1/2 INCH, GROUNDING STYLE 2, SHELL, EXTRA POLE, MATERIAL EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), ENAMEL COATED SHEET METAL (ENCLOSURE), ENCLOSURE NEMA 3/3R/4/4X/12, WIRE SIZE 14 TO 1/0 AWG, POWER RATING 75 HP AT 600 VAC, EXCLUDES VIEWING WINDOW, APPROVAL UL 98/50E/1682/1686, CSA C22.2, APPLICATION WELDER, GENERATOR, COMPRESSOR, INFRARED OVEN, BATCH FEEDER, CONVEYOR, TRUCK TERMINAL, MARINE DOCK, INDUSTRIAL PLANT
• Category: Pin & Sleeve Devices
• Full Technical Description: Interlocked Type; Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Enamel Coated Sheet Metal (Enclosure) Material; 3 Wire(S); 600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC Voltage Rating; NEMA 3/12 Enclosure; 100 Amp Current Rating; 4 Pole(S); Rain Tight, Water Tight; Non-Fusible Fuse Provision; Spring, Padlockable Cover; 2, Shell, Extra Pole Grounding Style; Wire Size 4 to 1/0 AWG; Power Rating 100 HP at 600 Volt AC; Excludes Viewing Window; Application Welder, Generator, Compressor, Infrared
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 781381756891
• SKU Name: app wsrd103542sq

Resources

• Manufacturer Spec Sheet
