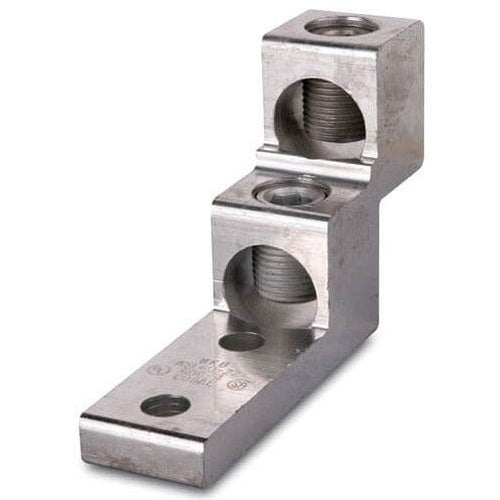

Blackburn ASL75-22 Aluminum 2Cndtr 2-Hole Mount 1/0Str-750
Product Specifications
UPC: 78378613318
Screw Type: ALLEN
Material: TIN PLATED ALUMINUM
Number Of Pad Holes: 2
Pad Size: 2-11/32 INCH L X 1-1/2 INCH W X 3/8 INCH THK
Stud Size: 13/32 INCH
Overall Length: 4-29/32 INCH
Approval: UL 486B, CSA
Catalog Number: ASL75-22
Brand Name: ASL-ALCUL
Type: DUAL RATED
Number Of Conductors: 2
Minimum Conductor Size: 3/0 AWG STRANDED
Maximum Conductor Size: 750 KCMIL
Conductor Material: ALUMINUM/COPPER
Pad Type: STRAIGHT
Catalog Description: TYPE ASL-ALCUL TWO-CONDUCTOR, TWO-HOLE MOUNT FOR CONDUCTOR RANGE MAX 750 KCMIL, MIN 1/0 STR.
Category: Large Terminals & Connectors
Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 4-29/32 Inch Overall Length; 3/0 AWG Stranded min. Conductor Size; 750 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 2 Conductor(S); 13/32 Inch Stud Size; 2-11/32 Inch L X 1-1/2 Inch W X 3/8 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; Allen Screw Type; Asl-ALCUL[TM] Brand
