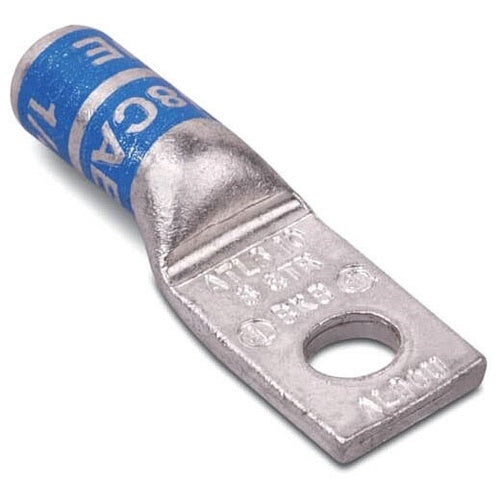

Blackburn ATL20-38 2/0 Aluminum/Copper Compression Lug

Overview

Blackburn ATL20-38 2/0 Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661097
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: Olive
• Die Index: 54
• Material: Tin Plated Seamless Aluminum
• Overall Length: 2-5/8 Inch
• Approval: UL, CSA
• Catalog Number: ATL20-38
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 2/0 AWG Stranded
• Barrel Type: Standard, Straight
• Barrel Length: 1-3/16 Inch
• Pad Size: 1 Inch L x 31/32 Inch W x 7/32 Inch Thk
• Catalog Description: TYPE ATL ALUMINUM ONE-HOLE LUG, MAX 35KV, WIRE SIZE 2/0 STR, 3/8 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE OLIVE
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Olive Color; 2-5/8 Inch Overall Length; 1-3/16 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 2/0 AWG Stranded Conductor Size; 3/8 Inch Stud Size; 54 Die Index; 1 Inch L X 31/32 Inch W X 7/32 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; ATL Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786610976
• SKU Name: atl2038 blkbrn

Resources

• Material Safety Data Sheet (MSDS)
• Manufacturer Spec Sheet
