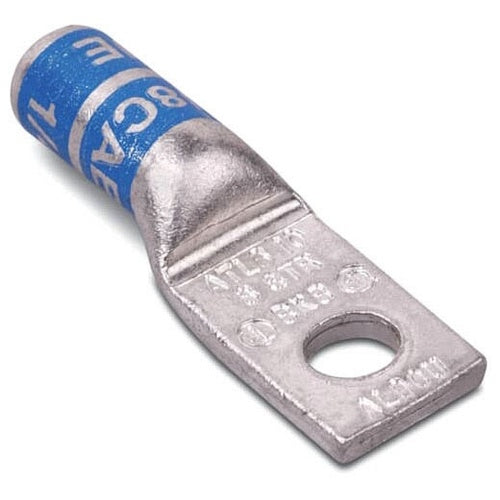

Blackburn ATL500-58 500 Aluminum/Copper Compression Lug

Overview

Blackburn ATL500-58 500 Aluminum/Copper Compression Lug

Product Specifications

• UPC: 78378661113
• Number Of Pad Holes: 1
• Stud Size: 5/8 Inch
• Color: Pink
• Die Index: 42, 99
• Material: Tin Plated Seamless Aluminum
• Overall Length: 5-11/16 Inch
• Approval: UL, CSA
• Catalog Number: ATL500-58
• Model: ATL
• Voltage Rating: 35 KV
• Conductor Material: Aluminum/Copper
• Conductor Size: 500 KCMIL
• Barrel Type: Standard, Straight
• Barrel Length: 2-11/16 Inch
• Pad Size: 2 Inch L x 1-25/32 Inch W x 3/8 Inch Thk
• Catalog Description: TYPE ALUMINUM ONE-HOLE LUG, MAX 35KV, 500 KCMIL WIRE, 5/8 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Aluminum Material; Pink Color; 5-11/16 Inch Overall Length; 2-11/16 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 500 kcmil Conductor Size; 5/8 Inch Stud Size; 42, 99 Die Index; 2 Inch L X 1-25/32 Inch W X 3/8 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; ATL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786611133
• SKU Name: atl50058 blackburn
