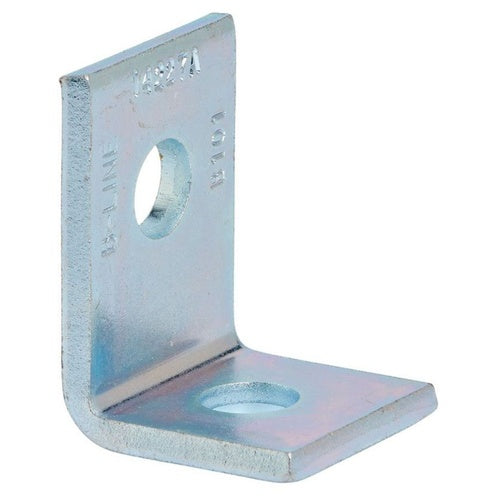

B-Line B101HDG 2-Hole Corner Angle, Hd Galvanized

Overview

B-Line B101HDG 2-Hole Corner Angle, Hd Galvanized

Product Specifications

• UPC: 78101150015
• Thickness: 7/32 Inch
• Channel Width: 1-5/8 Inch
• Material: ASTM A1018/A123 Steel
• Process: Hot Rolled Pickled Oiled
• Finish: Hot Dip Galvanized
• Additional Information: End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial
• Catalog Number: B101HDG
• Model: B101
• Type: Corner
• Applicable Standard: ISO 9001
• Number Of Sides: 2
• Number Of Holes: 2
• Hole/Slot Size: 9/16 Inch Dia Hole
• Size: 2-5/16 Inch L x 1-5/8 Inch W x 1-5/8 Inch H
• Catalog Description: EATON B-LINE SERIES CORNER ANGLE, 2.31" H X 2.31" L X 1.62" W, STEEL, HOT-DIPPED GALV, TWO HOLE CORNER ANGLE, 90 DEG
• Category: Channel & Strut Fittings
• Full Technical Description: Corner Type; ASTM A1018/A123 Steel Material; 2-5/16 Inch L X 1-5/8 Inch W X 1-5/8 Inch H Size; Hot Dip Galvanized Finish; 1-5/8 Inch Channel Width; ISO 9001 Applicable Standard; 7/32 Inch Thickness; Hot Rolled Pickled Oiled Process; 2 Hole(S); 9/16 Inch Dia Hole Hole/Slot Size; 2 Side(S); End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial; B101 Model
• Made In Usa: Yes
• Manufacturer: Eaton B-Line
• Manufacturer Brand: Eaton B-Line Systems Inc.
• Sub Category: Channel/Strut 90 Deg Angle Plate
• Unspsc: 39121311
• UPC 12 Digit: 781011500153
• SKU Name: bline b101hdg
