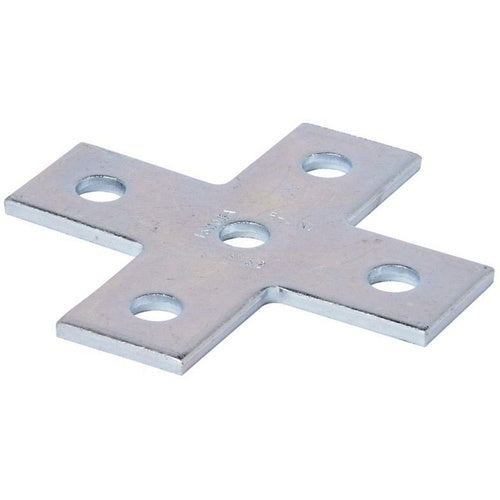

B-Line B132HDG 5-Hole Cross Plate, Hot Dip Galvanized
Product Specifications
UPC: 78101150344
Channel Width: 1-5/8 Inch
Material: ASTM A1018/A123 Steel
Process: Hot Rolled Pickled Oiled
Finish: Hot Dip Galvanized
Additional Information: End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial
Catalog Number: B132HDG
Model: B132
Type: Cross
Applicable Standard: ISO 9001
Number Of Holes: 5
Hole/Slot Size: 9/16 Inch Dia Hole
Length: 5-3/8 Inch
Thickness: 7/32 Inch
Catalog Description: EATON B-LINE SERIES TEE AND CROSS FLAT FITTING, 5.37" H X 5.37" L X 1.62" W, STEEL, HOT-DIPPED GALVANIZED, 1/4" GAUGE
Category: Channel & Strut Fittings
Full Technical Description: Cross Type; ASTM A1018/A123 Steel Material; Hot Dip Galvanized Finish; 5-3/8 Inch; 1-5/8 Inch Channel Width; ISO 9001 Applicable Standard; 7/32 Inch Thickness; Hot Rolled Pickled Oiled Process; 5 Hole(S); 9/16 Inch Dia Hole Hole/Slot Size; End to Hole Center Size 13/16 Inch; Hole Spacing on Center Size 1-7/8 Inch; Excludes Nut and Bolt; Application Electrical, Mechanical, Industrial; B132 Model
