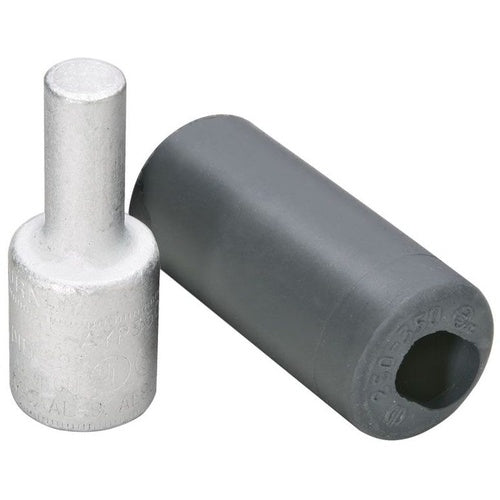

Burndy AYP4 4Awg Termination Plug

Overview

Burndy AYP4 4Awg Termination Plug

Product Specifications

• UPC: 78181073752
• Insulation Type: EPDM Rubber Insulated
• Pin Size: 0.23 Inch Diameter x 0.68 Inch Length
• Cover Size: 2.03 Inch Length
• Overall Length: 1.85 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Color Tan; Temperature Rating 90 Deg C; Die Index 296; Wire Strip Length 1-1/16 Inch
• Catalog Number: AYP4
• Brand Name: HYPLUG[TM]
• Model: AYP
• Type: Straight
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 4 AWG Stranded (Copper/Aluminum)
• Material: Electro Tin Plated Aluminum
• Catalog Description: ALUMINUM COMPRESSION ADAPTOR, 4 AWG, 0.23" PLUG DIAMETER, 0.68" PLUG LENGTH, AL/CU RATED, TIN PLATED.
• Category: Large Terminals & Connectors
• Full Technical Description: Straight Type; Electro Tin Plated Aluminum Material; 1.85 Inch Overall Length; Copper/Aluminum Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 4 AWG Stranded (Copper/Aluminum) Conductor Size; EPDM Rubber Insulated Insulation Type; 2.03 Inch Length Cover Size; 0.23 Inch Diameter X 0.68 Inch Length Pin Size; HYPLUG[TM] Brand; RoHS Compliant; Color Tan; Temperature Rating 90 Deg C; Die Index 296; Wire Strip Length 1-1/16 Inch; AYP Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Terminal Pin Adapter
• Unspsc: 39121448
• UPC 12 Digit: 781810737521
• SKU Name: bur ayp4

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
