Additional Information: RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 1-1/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
Catalog Number: YA282LN
Brand Name: Burndy
Model: YA-2LN
Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 4/0 AWG Stranded, 200 Navy
Barrel Type: Short, Skived, Straight
Barrel Length: 0.88 Inch

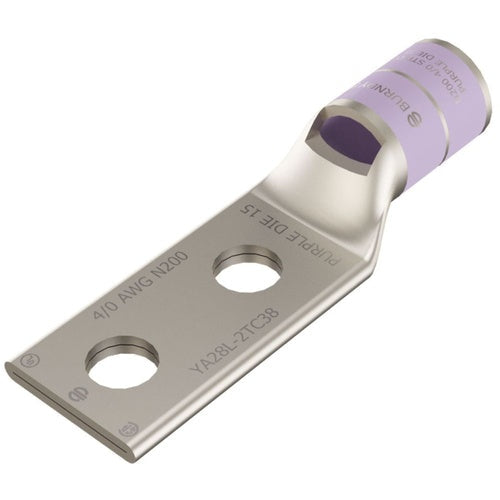

Catalog Description: 4/0 AWG CU, TWO HOLE, 1/2 STUD SIZE, 1-3/4 HOLE SPACING, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Copper Material; Purple Color; 4.41 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4/0 AWG Stranded, 200 Navy Conductor Size; 1/2 Inch Stud Size; 15 Die Index; 1.02 Inch Width X 0.14 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Short, Skived, Straight Barrel Type; Hylug Brand; RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 1-1/8 Inch; Includes Inspection Window; Temperature Rating 90 Deg C; YA-2LN Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
