Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-11/16 Inch; Cable Entry Type Beveled Entry, Chamfered

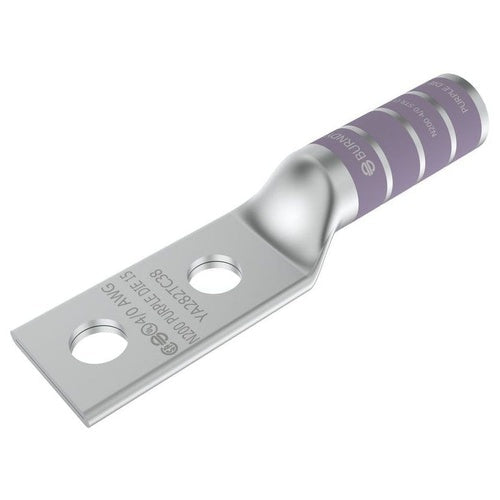

Catalog Number: YA282TC38
Brand Name: HYLUG[TM]
Model: YA-2TC
Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 4/0 AWG Solid/Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.62 Inch
Catalog Description: 4/0 AWG CU, TWO HOLE, 3/8 STUD SIZE, 1 HOLE SPACING, LONG BARREL INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PURPLE COLOR CODE, 15 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Copper Material; Purple Color; 3.99 Inch Overall Length; 1.62 Inch Barrel Length; Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Solid/Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 15 Die Index; 1.02 Inch W X 0.14 Inch Thk Pad Size; 2 Pad Hole(S); 1 Inch Pad Hole Spacing; Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-11/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-2TC Model
Made In Usa: Yes
Manufacturer: BURNDY PRODUCTS
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
