Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
Catalog Number: YA2CLBOX
Brand Name: HYLUG[TM], HYDENT[TM]
Model: YA-L
Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG Stranded (Code), 60 (Navy)
Barrel Type: Standard, Straight, Non-Insulated
Barrel Length: 0.88 Inch

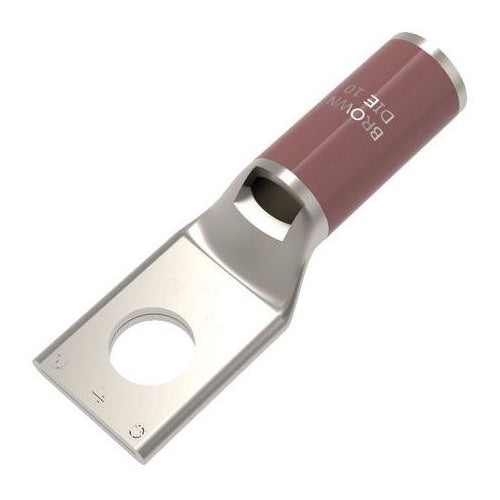

Catalog Description: 2 AWG CU, ONE HOLE, 5/16 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 1.93 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 2 AWG Stranded (Code), 60 (Navy) Conductor Size; 5/16 Inch Stud Size; 10 Die Index; 0.61 Inch Width X 0.11 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; HYLUG[TM], HYDENT[TM] Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
