Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-7/8 Inch
Catalog Number: YA39A3
Brand Name: HYLUG[TM]
Model: YA-A
Voltage Rating: 600 V to 35 kV
Conductor Material: Aluminum/Copper
Conductor Size: 700 to 750 KCMIL (Aluminum), 700 to 750 KCMIL Stranded (Copper), 900 KCMIL Compact (Aluminum)
Barrel Type: Standard, Straight
Barrel Length: 2.46 Inch

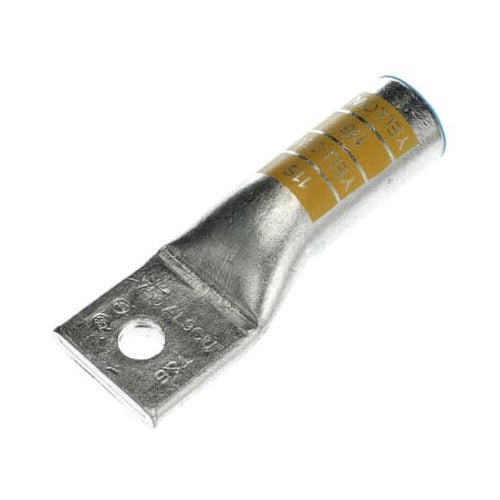

Catalog Description: 750 KCMIL, AL TERMINAL, ONE HOLE, 5/8", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, YELLOW COLOR CODE, 936 DIE INDEX
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Yellow Color; 5.8 Inch Overall Length; 2.46 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 700 to 750 kcmil (Aluminum), 700 to 750 kcmil Stranded (Copper), 900 kcmil Compact (Aluminum) Conductor Size; 5/8 Inch Stud Size; 936 Die Index; 2.05 Inch W X 0.43 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 2-7/8 Inch; YA-A Model
Made In Usa: Yes
Manufacturer: Burndy Products
Manufacturer Brand: Burndy Products
Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
