Additional Information: RoHS Compatible; Includes Color Coded End Cap; Temperature Rating 90 Deg C; Wire Strip Length 7/8 Inch; Cable Entry Type Beveled Entry

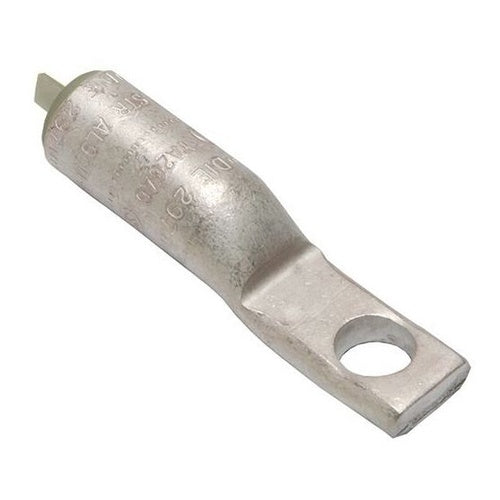

Catalog Description: 4 AWG, AL TERMINAL, ONE HOLE, 5/16", STUD SIZE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, GREEN COLOR CODE, 375 DIE INDEX.
Category: Large Terminals & Connectors
Full Technical Description: Electro-Tin Plated Wrought Aluminum Material; Green Color; 2.25 Inch Overall Length; 0.88 Inch Barrel Length; Aluminum/Copper Conductor Material; UL 468A/468B, CSA Approval; 600 V to 35 kV Voltage Rating; 4 AWG (Aluminum), 4 AWG Stranded (Copper) Conductor Size; 5/16 Inch Stud Size; 375 Die Index; 0.8 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Color Coded End Cap; Temperature Rating 90 Deg C; Wire Strip Length 7/8 Inch; Cable Entry Type Beveled Entry; YA-A Model
