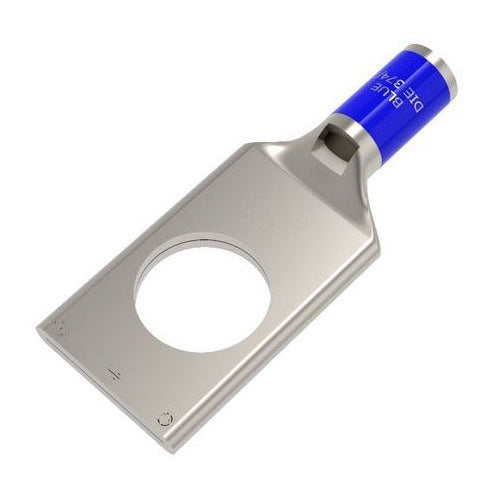

Burndy YA6C-LBOX #6Awg Copper 1-Hole

Overview

Burndy YA6C-LBOX #6Awg Copper 1-Hole

Product Specifications

• UPC: 78181055275
• Pad Size: 0.45 Inch Width x 0.08 Inch Thickness
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Blue
• Die Index: 7/374
• Material: Electro Tin Plated Copper
• Overall Length: 1.45 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 9/16 Inch; Temperature Rating 90 Deg C; With Inspection Window
• Catalog Number: YA6CLBOX
• Brand Name: HYLUG[TM], HYDENT[TM]
• Model: YA-L
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 6 AWG Solid/Stranded (Code)
• Barrel Type: Standard, Straight, Non-Insulated
• Barrel Length: 0.54 Inch
• Catalog Description: 6 AWG CU, ONE HOLE, 1/4 STUD SIZE, STANDARD BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA 90 UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 1.45 Inch Overall Length; 0.54 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; 6 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 7/374 Die Index; 0.45 Inch Width X 0.08 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight, Non-Insulated Barrel Type; Hylug Brand; RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 9/16 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810552759
• SKU Name: bur ya6clbox
