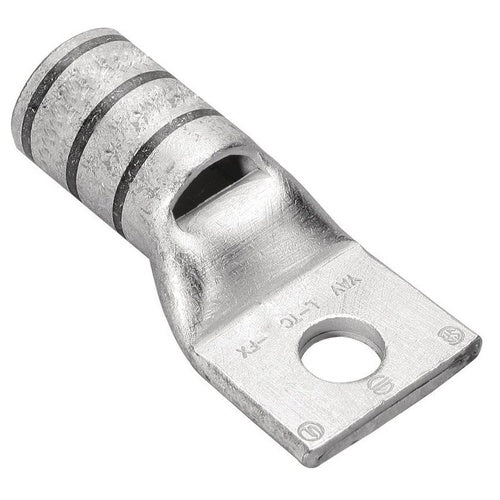

Burndy YAV8CL4BOX 8Awg Ring Lug

Overview

Burndy YAV8CL4BOX 8Awg Ring Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, HEAVY DUTY, RING TONGUE, 1 HOLE W/ INSPECTION WINDOW, AN 8 FLEX, 1/2" STUD, SHORT BARREL, TIN PLATED
• Full Technical Description: Beveled Entry, Seamless Barrel, Heavy Duty, Double Thick Straight Tongue Type; 8 AWG (Aircraft/Flex) Max. Conductor Size; UL, CSA Approval; 1/2 Inch Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Size 1.52 Inch L X 0.73 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 1/2 Inch; Die Index 38; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; Packaging Type Box; YAV-LBOX Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810541456
• SKU Name: bur yav8cl4box

Resources

• Manufacturer Spec Sheet
