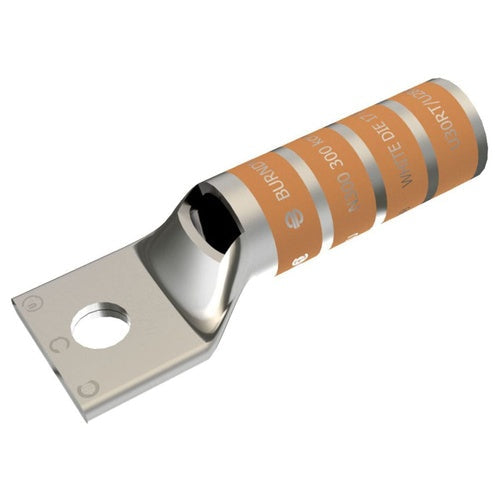

Burndy YAZ27TC12 1-Hole Compression Lug

Overview

Burndy YAZ27TC12 1-Hole Compression Lug

Product Specifications

• Catalog Description: 3/0 AWG CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INSPECTION WINDOW, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, ORANGE COLOR CODE, 14 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Orange Color; 3.04 Inch Overall Length; 1.5 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 150 (Navy), 3/0 AWG Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 14 Die Index; 0.9 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Long, Skived, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-9/16 Inch; YAZ Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810240083
• SKU Name: bur yaz27tc12

Resources

• Technical Drawing
• Manufacturer Spec Sheet
