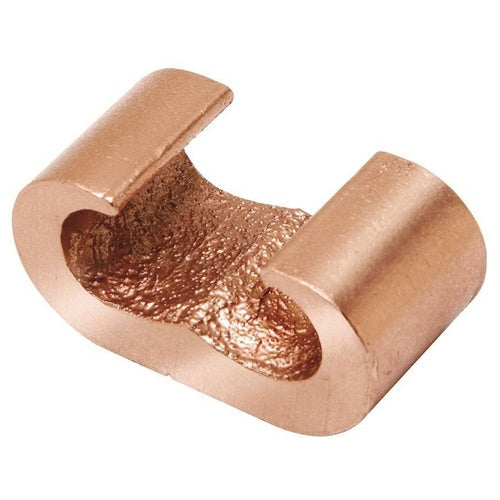

Burndy YGHC34C34 500 Compression Ground Tap

Overview

Burndy YGHC34C34 500 Compression Ground Tap

Product Specifications

• UPC: 78181022108
• Minimum Tap Conductor Size: 300 KCMIL (ACSR), 300 KCMIL Stranded, 397 KCMIL (Compressed ACSR), 477 KCMIL (Copper/Aluminum, Compact)
• Maximum Tap Conductor Size: 500 KCMIL
• Die Index: 1011
• Body Material: Copper
• Approval: UL 486A/486B/467, CSA
• Additional Information: ROHS COMPATIBLE; SIZE 1.1 INCH L X 2.91 INCH H; APPLICATION FOR DIRECT BURIAL CABLE
• Catalog Number: YGHC34C34
• Brand Name: HYGROUND[R], HYTAP[TM]
• Model: YGHC-C
• Shape: C
• Number Of Taps: 1
• Conductor Material: Copper
• Minimum Run Conductor Size: 300 KCMIL Stranded
• Maximum Run Conductor Size: 500 KCMIL Stranded
• Catalog Description: COPPER COMPRESSION C CONNECTOR, 300-500 KCMIL (RUN & TAP).
• Category: Large Terminals & Connectors
• Full Technical Description: 300 kcmil Stranded min. Run Conductor Size; 500 kcmil Stranded Max. Run Conductor Size; 300 kcmil (ACSR), 300 kcmil Stranded, 397 kcmil (Compressed ACSR), 477 kcmil (Copper/Aluminum, Compact) min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; C Shape; Copper Conductor Material; UL 486A/486B/467, CSA Approval; Copper Body Material; 1011 Die Index; 1 Tap(S); HYGROUND[R], HYTAP[TM] Brand; RoHS Compatible; Size 1.1 Inch L X 2.91 Inch H; Application For Direct Burial Cable; YGHC-C Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Tap
• Unspsc: 39121427
• UPC 12 Digit: 781810221082
• SKU Name: bur yghc34c34

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
