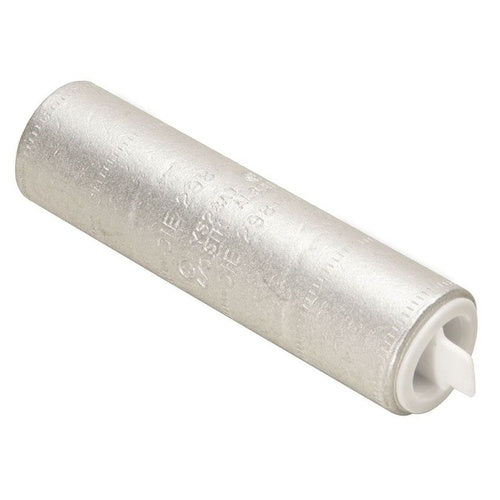

Burndy YS28A1 4/0Str Copper/Aluminum Compression Splice

Overview

Burndy YS28A1 4/0Str Copper/Aluminum Compression Splice

Product Specifications

• UPC: 78181075730
• Barrel Type: Long with Belled End, Chamfered
• Length: 3.06 Inch
• Outer Diameter: 0.85 Inch
• Body Material: Electro Tin Plated Aluminum
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-5/8 Inch; Die Index 298; Temperature Rating 90 Deg C
• Catalog Number: YS28A1
• Brand Name: HYLINK[TM]
• Model: YS-A
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 4/0 AWG (Aluminum), 4/0 AWG Stranded (Copper)
• Conductor Material: Copper/Aluminum
• Color Code: White
• Catalog Description: 4/0 AWG AL SPLICE, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 3.06 Inch; 0.85 Inch Outer Diameter; Copper/Aluminum Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Aluminum Body Material; 4/0 AWG (Aluminum), 4/0 AWG Stranded (Copper) Conductor Size; White Color Code; Long With Belled End, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-5/8 Inch; Die Index 298; Temperature Rating 90 Deg C; YS-A Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810757307
• SKU Name: bur ys28a1

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
