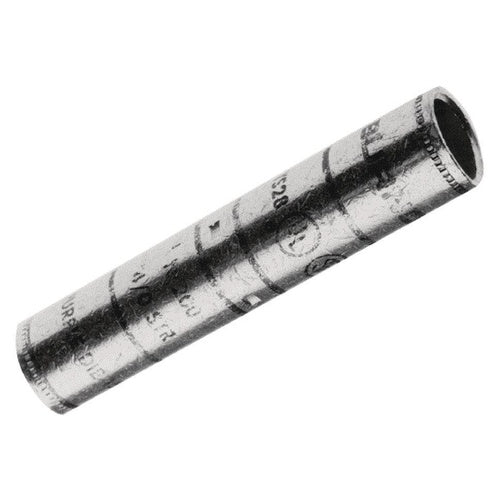

Burndy YS39 750Mcm Copper Butt Splice

Overview

Burndy YS39 750Mcm Copper Butt Splice

Product Specifications

• UPC: 78181052685
• Barrel Type: Long with Beveled Entry, Chamfered
• Length: 6.38 Inch
• Outer Diameter: 1.3 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL 486A/B, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 2-15/16 Inch; Die Index Number 24; Temperature Rating 90 Deg C
• Catalog Number: YS39
• Brand Name: Burndy
• Model: YS
• Type: Butt and Centre Wire Stop
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 750 KCMIL Stranded
• Conductor Material: Copper
• Color Code: Black
• Catalog Description: 750 KCMIL CU, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLACK COLOR CODE, 24 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt and Centre Wire Stop Type; 6.38 Inch; 1.3 Inch Outer Diameter; Copper Conductor Material; UL 486A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 750 kcmil Stranded Conductor Size; Black Color Code; Long With Beveled Entry, Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 2-15/16 Inch; Die Index Number 24; Temperature Rating 90 Deg C; YS Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810526859
• SKU Name: bur ys39

Resources

• Technical Line Drawing
• Manufacturer Spec Sheet
