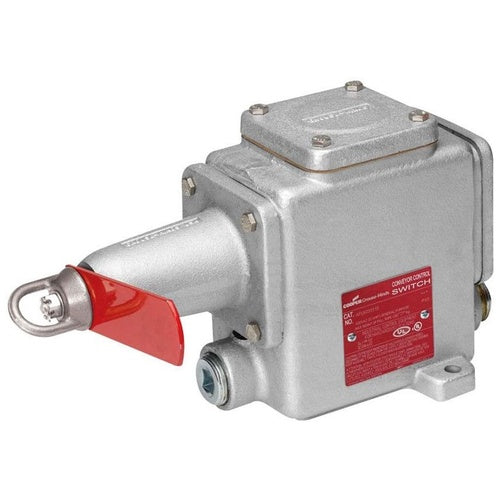

Catalog Description: EATON CROUSE-HINDS SERIES AFUX CONVEYOR BELT CONTROL SWITCH, 15A, TWO NORMALLY OPEN/TWO NORMALLY CLOSED, FERALOY IRON, 25 LB TOTAL OPER FORCE, SINGLE END LEFT, 15 LB WITHOUT SWITCH, (3) 1" HUBS
Full Technical Description: Single End Left Hand Type; 18.16 Inch L X 9.5 Inch D X 4-15/16 Inch H Size; 15 lb Max. Unsupported Line Weight; 2NO-2NC (Each End) Contact Configuration; Maintained Operation Type; UL 698, CUL Approval; Wet Location Application; 600 VAC Voltage Rating; (3) 1-1/2 Inch on-Center Lug Mounting; Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7C/7D/9E/9F/9G, IP65 Enclosure; 15 Ampere Current Rating; Feraloy Iron Alloy Body Material; Plunger Operator Type; Electrogalvanized Aluminum Acrylic Painted Body Finish; 25 lb Operating Force; (3) 1 Inch Hub Cable/Conduit Entry; AFUX Model
