Crouse-Hinds AP20455 4W-4P Plug

Overview

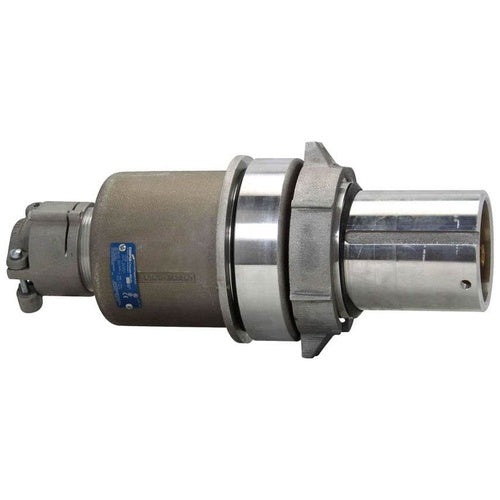

Crouse-Hinds AP20455 4W-4P Plug

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES ARKTITE AP PLUG, 200A, 0.875-1.375", FOUR-WIRE, FOUR-POLE, 50-400 HZ, STYLE 1, COPPER-FREE ALUMINUM, CRIMP/SOLDER, 600 VAC/250 VDC, 0.56" MAX
• Full Technical Description: Heavy Duty, Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Welder Type; Natural Copper-Free Aluminum Material; 0.875 Inch min. Cable Outer Diameter; 1.375 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686, CSA C22.2, CE Approval; 600 Volt AC at 50 to 400 Hertz, 250 Volt DC Voltage Rating; 200 Amp Current Rating; 4 Pole(S); Corrosion/Moisture Resistant, Dirt/Dust Tight; 1, Shell Grounding Style; ARKTITE[R] Brand; Overall Dimension 6-3/4 Inch Diameter X 14-3/4 Inch Length; Wire Well Size 0.56 Inch; Cover Style Threaded; Cable Grip Type Clam Shell; Termination Type Crimp/Solder; Enclosure Type NEMA 3R; AP Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 782274039503
• SKU Name: crsh ap20455

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
