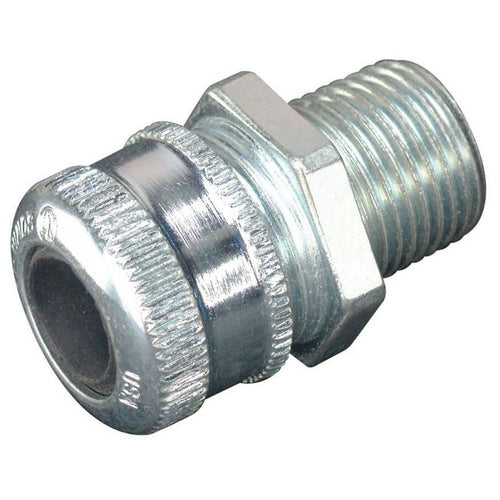

Crouse-Hinds CGB598 1-1/2" .875-1.000 Connector

Overview

Crouse-Hinds CGB598 1-1/2" .875-1.000 Connector

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CGB CABLE GLAND, CABLE RANGE MIN/MAX: 0.875-1.000", NON-ARMOURED AND TRAY CABLE, NON-ARMOURED, STEEL, GENERAL PURPOSE, 1-1/2" NPT
• Full Technical Description: Straight, Threaded Male Type; Zinc Electroplated Chromate Coated Steel (Body/Gland Nut) Material; 3.126 Inch; Non-Armored, Tray Cable Type; UL (Canada and Us) Approval; Class I, Div 2, NEMA 3R Enclosure; 1-1/2 Inch NPT Thread Size; -25 to 40 Deg C Operating Temperature; Weatherproof; 0.875 to 1 Inch Cable Outer Diameter; Applicable Standard NEC 501.10; Thread Length 0.813 Inch; Application Hazardous Location; CGB Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Cable Gland
• Unspsc: 39121311
• UPC 12 Digit: 782274135502
• SKU Name: crsh cgb598

Resources

• Product Brochure
• Manufacturer Spec Sheet
