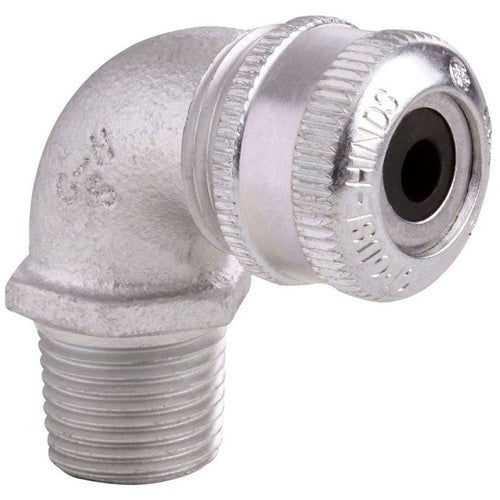

Crouse-Hinds CGE396 1" .625-.750 Watertight Connector

Overview

Crouse-Hinds CGE396 1" .625-.750 Watertight Connector

Product Specifications

• UPC: 78227414400.0
• 90 Degree Type
• Feraloy Iron Alloy Material
• 2.09 Inch
• Non-Armored, Tray Cable Type
• UL (Canada and Us) Approval
• 1 Inch Thread Size
• -25 to 40 Deg C Operating Temperature
• 0.62 to 0.75 Inch Cable Outer Diameter
• Applicable Standard NEC 501.10
• Catalog Description: EATON CROUSE-HINDS SERIES CGE CABLE GLAND, CABLE RANGE MIN/MAX: 0.625-0.750", NON-ARMOURED AND TRAY CABLE, 90 ANGLE, NON-ARMOURED GLAND, FERALOY IRON ALLOY, GENERAL PURPOSE, 1" NPT
• SKU Name: CRSH CGE396

Resources

• Product Brochure
• Manufacturer Spec Sheet
