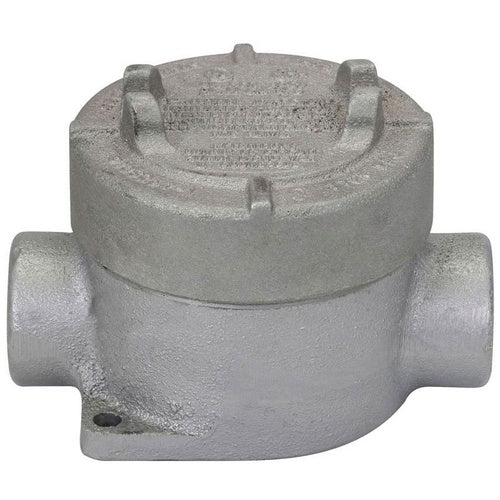

Crouse-Hinds EAJC36 1" C-Type Conduit Body

Overview

Crouse-Hinds EAJC36 1" C-Type Conduit Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET EAJ CONDUIT OUTLET BOX WITH COVER, 3-3/16" COVER OPENING DIAMETER, FERALOY IRON ALLOY, C SHAPE, 1"
• Full Technical Description: Electrogalvanized Aluminum Acrylic Painted Feraloy Iron Alloy (Body), Natural Copper-Free Aluminum (Cover) Material; Round Shape; 1 Inch Hub Size; 2 Hub(S); UL 1203, CSA C22.2 Approval; Pad Mounting; Class I Div 1 and 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/4/7A/7B/7C/7D/9E/9F/9G Enclosure; Overlapping Threaded Cover Type; E Style; Feed-Through Hub Location; External Hub Type; 3-3/16 Inch Cover Opening Diameter; CONDULET[R] Brand; Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Includes Cover, Grounding Screw; Application Wet Location; EAJ Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121309
• UPC 12 Digit: 782274943794
• SKU Name: crsh eajc36

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
